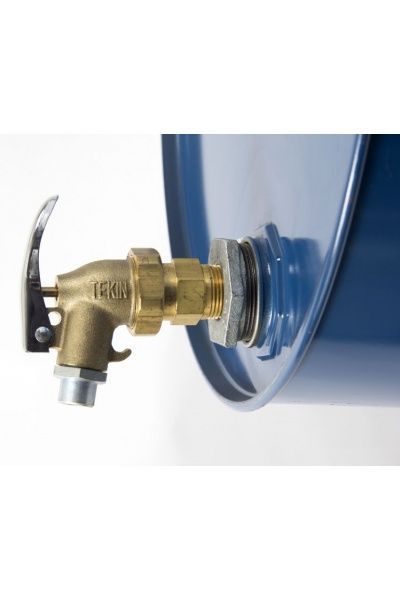

The Tekin quick-operation safety valve is not part of the siphon system, does not store flammable liquid, and closes at the valve inlet. It allows for one-handed operation, allowing for the required dosage, and features flame arrestor protection at the outlet, eliminating the risk of explosion. Ideal for non-viscous liquids, it has a Teflon seal compatible with all flammable liquids on the market and is available in aluminum, bronze, and 316 stainless steel.

3/4" Aluminum Code 10189

3/4" BronzeCode 10190

3/4" InoxCód.10191

1" Aluminum Code 10192

1" BronzeCode 10193

1" InoxCód.10194

2" Aluminum Code 10195

2" BronzeCode 10196

2" InoxCód.10197

Regulatory Standards Approved

N - Within NFPA specifications
O - In accordance with OSHA regulations
NR - In accordance with Brazilian regulations.

Tekin has a huge amount of transfer products, each designed for a purpose (need).

Technical Description:

The 1000 series safety metering valve is made of AISI 316 stainless steel, bronze, and/or aluminum. It does not store flammable liquid waste; it is closed at the valve inlet. It is easy to use and can be operated with just one hand. It allows for withdrawal at the required dosage. It has a flame arrestor system adapted to its outlet, eliminating the risk of container explosion.

Application:

Used in drums to facilitate the removal of flammable liquids, ensuring safety and efficiency in handling.

Material compatibility:

316 Stainless Steel: Compatible with all types of flammable and combustible materials, except corrosive and acidic liquids. Preserves product integrity, making it ideal for the pharmaceutical and food industries.

Bronze: Compatible with all types of flammable and combustible materials, except corrosive and acidic liquids. Keeps the product free from contamination, suitable for the pharmaceutical and food industries.

Aluminum: Compatible with all types of flammable and combustible materials, except corrosive and acidic liquids. Maintains product purity, ideal for the pharmaceutical and food industries.

Mode of operation:

Screw the valve onto the drum and place it horizontally. To release the liquid, pull the valve lever to remove the flammable liquid. Releasing the valve automatically closes the drum.
