Drop Container

(Images for illustrative purposes only)

Tekin has a wide range of transfer products, each designed for a specific purpose (need). Tested and quality-assured products, a quality that builds trust because they have undergone rigorous industry and other testing.

Drip Container Specification

Tekin's flammable liquid containers are designed for use wherever a container or drum with a tap is located and frequently leaks. They retain droplets from the tap, preventing a potential fire thanks to a flame-retardant screen on the surface of the container, which is designed to support containers being filled.

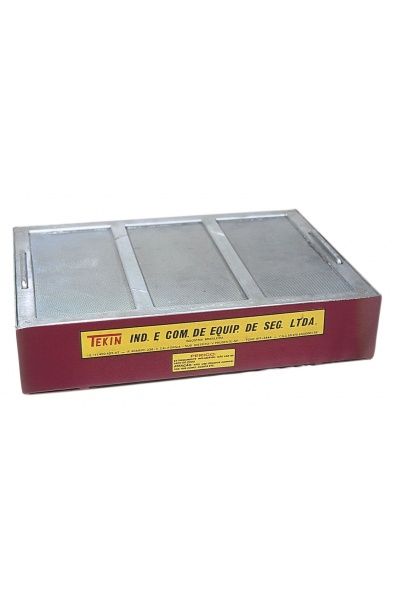

400mmx300mmx80mm Drip Container with Flame Retardant System on the Entire Top

Stainless Steel Code 10323

With Coating Code 10200

Technical Description:

Safety container model TK 01 made of AISI 304 stainless steel and/or SAE 1010/20 carbon steel with measurements as per the table below.

Application:

Used in locations that require containment for containers or drums with taps and that frequently experience leaks (dripping). It retains droplets from the tap, preventing a potential fire. It has a flame-retardant screen over its entire surface and reinforcement to support containers and cans to be filled.

Stainless steel is not compatible with products such as: sulfuric acid.

Mode of operation:

Position the drip container in the direction of the valve (tap) that will be activated to pour the liquid into a container, which will contain any splashes.

Built-in quality:

• Product meets national and international regulations;
• Prevents the spread of fire in case of fire;
• Equipped with flame arrester and anti-explosion system;
• Wide base with 8-liter containment capacity;
• Use of spilled liquid, avoiding waste and inhalation of toxic vapors released by it.
• Facilitates the disposal of liquid waste.

Code

10323

10200

Model

TK01

TK01

Height

80mm

80mm

Width

300mm

300mm

Length

400mm

400mm

Weight

4kg

4kg

Material

Stainless Steel

Stainless Steel
