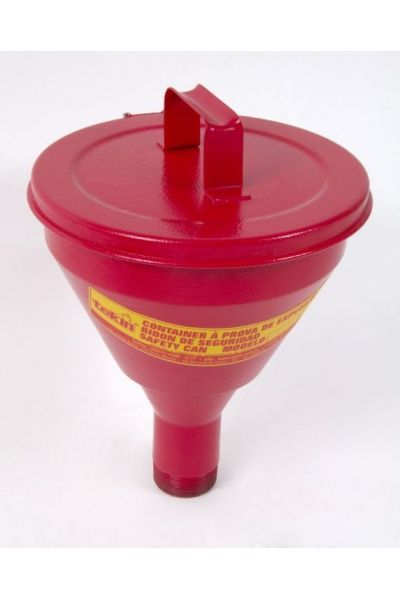

Safety Funnel for Drums

(Images for illustrative purposes only)

1.5LC/Rev. 3/4" BSP Thread (SMALL DRUM NOZZLE)

Code.10184

3.0LC/Rev. 2" BSP Thread (LARGE DRUM NOZZLE)Code 10185

Tekin has a wide range of transfer products, each designed for a specific purpose (need). Tested and quality-assured products, a quality that builds trust because they have undergone rigorous industry and other testing.

Technical Description:

Safety and explosion-proof funnel model TK 2020, with flame arrestor and thermomechanical fuse, ideal for safely filling and/or disposing of flammable and combustible materials at the drum nozzles and in an explosion-proof manner. It has a lid with instant (automatic) spring closure in case the thermal fuse trips due to contact with a temperature equal to or above 68 degrees Celsius.

Application:

Used in drums by screwing it onto the drum to dispose of flammable and combustible liquids in general.

Mode of operation:

Screw the funnel onto the drum's 2" or ¾" opening and keep the lid closed when not in use. If the funnel is left open, it will automatically close in the event of a fire, cutting off oxygen and preventing the drum from exploding.

Built-in quality:

• Product meets national and international regulations;
• Prevents the spread of fire in case of fire;
• It has a lid that automatically closes when exposed to fire;
• It has a flame arrester system;
• It has 68º fuse protection when in the open position;
• Prevents the emission of toxic vapors into the environment;
• Extinguishes fire inside the funnel in case of fire;
• Automatically extinguishes the fire when the fuse breaks.

Code

10185

10184

Model

Funil TK 2020 - 3 Lts

Funil TK 2020 - 1.5 Lts

External Ø

240mm

195mm

Total height

390mm

300mm

Weight

1,5kg

700gr

Material

Carbon steel

Carbon steel
