TK1


(Images for illustrative purposes only)

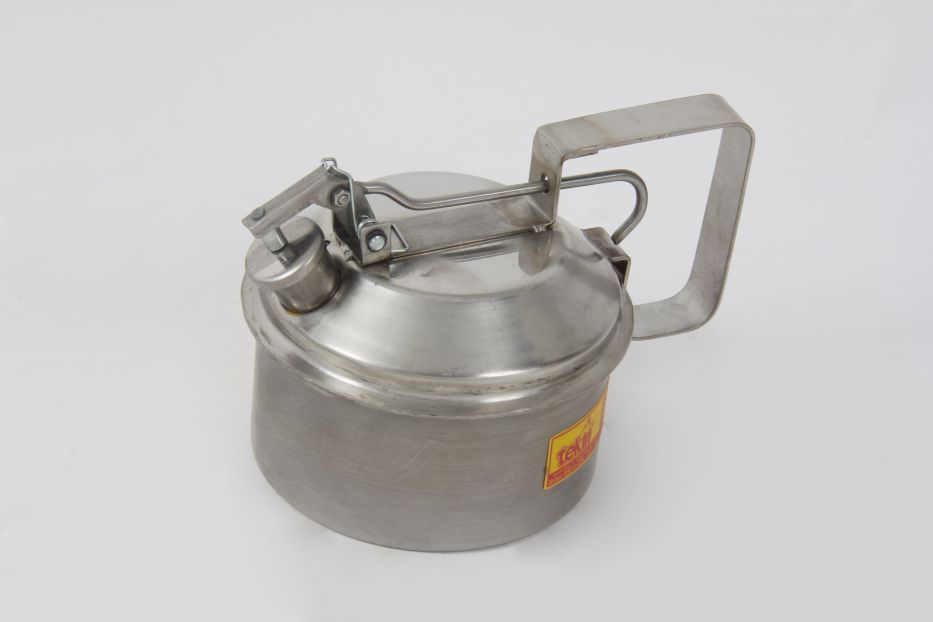

Security Container



It was carefully designed for the transport and storage of small quantities of flammable liquids. This model features a top opening for liquid inlet and outlet, which incorporates a flame arrestor system to prevent possible explosions. For this opening, a lid entirely lined with a solvent-resistant seal and a spring was designed to prevent spillage and relieve the internal pressure of the liquid being transported. The lid is easily opened by means of a trigger positioned in the appropriate position.


250 ml InoxCode 10175


500ml InoxCód. 10177


1.0L InoxCód. 10179


2.0L InoxCód 10181


Tekin has a wide range of transfer products, each designed for a specific purpose (need). Tested and guaranteed quality, this quality builds trust, as they have undergone rigorous industry and other torture (resistance) tests.



Technical Description:

Safety and explosion-proof container model TK 1, capacity as per the table below. Made of AISI 304 stainless steel.



Application:

It is used to transport flammable and combustible liquids.



Compatibility of flammable liquids:

Acetone, ethyl alcohol, isopropyl alcohol, ammonium hydroxide, chloroform, ethyl acetate, ether, diesel fuel, lubricants, naphtha, diesel oil, fuel oil, perchlorethylene, sodium hydroxide, toluene, toluene and silicone etc.

Note: The nozzle seal can be attacked by products containing: chloroform and Heptane.

Please note that the product made of stainless steel is not compatible with products such as sulfuric and hydrochloric acids, etc.



Mode of operation:

When filling, the operator opens the lid by activating the trigger or lever on the upper handle.




Built-in quality:

  • Product meets national and international regulations;
  • Prevents the spread of fire in case of fire;
  • Facilitates handling and allows for quick transfers of flammable liquids;
  • Equipped with flame arrester and anti-explosion system;
  • Self-closing lid and ergonomic handles;
  • Keep the workplace organized and in accordance with safety requirements and NBR 11564 (hazard)



Information by code or capacity

Code

10175

10177

10179

10177

Model

TK 1 - 250ml

TK 1 - 500ml

TK 1 - 1L

TK 1 - 2L

External Ø

85mm

85mm

140mm

140mm

Ø nozzle

14mm

14mm

23mm

23mm

Total height

105mm

142mm

125mm

175mm

Weight

250gr

500gr

1 kg

2Kg

Material

Stainless steel

Stainless steel

Stainless steel

Stainless steel
