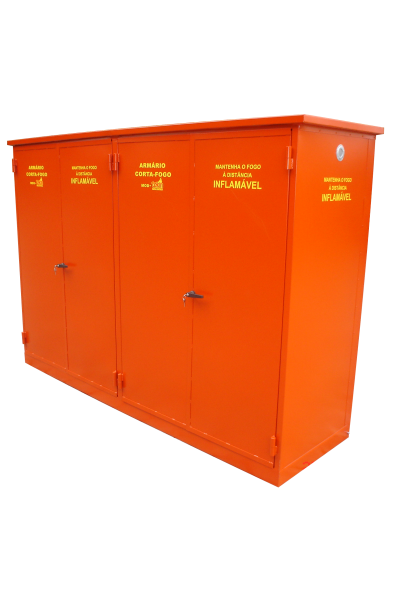

Fireproof Cabinet for 4 Drums Side by Side Vertically and Horizontally - COD. TK 11001 and TK 11002

(Images for illustrative purposes only)

Sizes and Codes

▸ 4 Drums side by side vertically – 1650 x 3200 x 940 mm – Code TK 11001 – 500 kg

▸ 4 Drums side by side horizontally – 1500 x 3200 x 1200 mm – Code TK 11002 – 500 kg

Examples of possible combinations

▸ Flammable / Combustible ▸ Flammable / Corrosive ▸ Combustible / Corrosive ▸ Other combinations on request

Description

Fireproof cabinet for 4 x 200-liter drums, vertical or horizontal model, built in carbon steel sheet internally and externally, with a layer of resistant insulation around the entire perimeter.



▸ Top and bottom opening with double flame arrester system for ventilation of light and heavy gases ▸ Fire resistance of 900°C for 1 hour ▸ Lower base in reinforced “U” sheet profile ▸ Two doors on each side, 3-point locking with handle and 2 keys ▸ False bottom functioning as a containment dam ▸ Fireproof ceiling and drip pan ▸ Internal and external painting in standard red or custom colors

Meets the standards: NFPA, OSHA, NR 20, NB 98, Ordinance 3214/78 and UL 1275

Built-in Security

▸ Flame arrestor system on the opening edges to prevent explosion ▸ Built-in anti-spark lock with three-point locking ▸ False bottom with fully removable perforated plate type grill for collecting liquids ▸ Grounding points all around for cable installation ▸ Thermal insulation according to NBR 17505-4

Convenience and Quality

▸ Continuous closure for greater security ▸ Adjustable shelves for better use of internal space ▸ Reinforced “U” beam (3 mm thick, 100 mm high) ▸ Door system with 2 leaves on each side and central column for easy handling of drums ▸ Structure with 4 leveling shoes for stability and safe transport

Colors and Purpose

▸ Red – Combustibles, Class III ▸ Yellow – Flammable liquids ▸ Blue – Acids ▸ Green – Pesticides and insecticides

Applications

▸ Storage of drums and canisters with flammable and combustible liquids ▸ Storage of flammable, combustible and corrosive liquids in medium and large quantities

Note: Other sizes and colors available upon request.

Request a quote for customizing dimensions

Code

11001

11002

Model

TK20 photo cutting cabinet for 4 vertical drums

TK20 photo cutting cabinet for 4 horizontal drums

Height

3200mm

3200mm

Width

1650mm

1500mm

Depth

940mm

1200mm

Capacity

500kg

500kg
