Flammable Cabinet - COD 10212

(Images for illustrative purposes only)

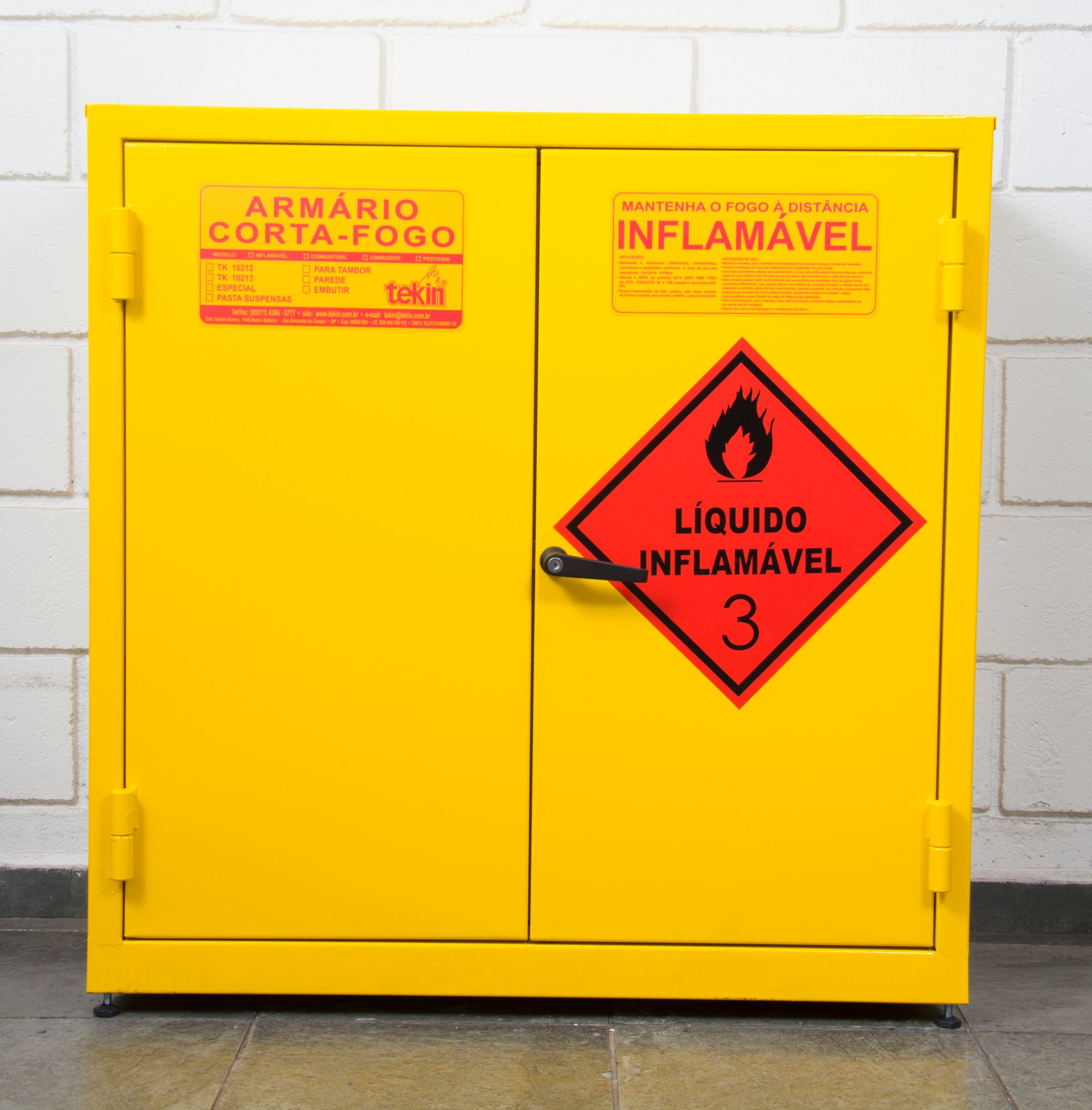

Fireproof Cabinet for Flammable Materials – 1000x1000x450

Code TK10212

Fireproof cabinet for flammable materials constructed of carbon steel plates inside and out, with a layer of resistant insulation all around. It features top and bottom openings with a double flame-retardant system that acts as a ventilation vent for light and heavy gases.

Designed to withstand temperatures of 900°C for 1 hour, it features a reinforced lower base made of "U" sheet metal, with threads for installing four leveling feet. Equipped with two doors with built-in spark-proof Cremona latch and two keys, plus movable and adjustable shelves (flap up or down), adjustable on internal rulers every 15 cm.

Internally and externally painted finish in standard colors:

▸ Yellow: storage of flammable liquids in general (storage flammable liquids).



The cabinet meets NFPA, OSHA, NR 20, NB 98 (Ordinance 3214/78), UL 1275 – Flammable Liquid Storage Cabinets and NBR 17505-4 standards, in addition to fire resistance tests carried out by IPT – Instituto de Pesquisas Tecnológicas.

Built-in Security

▸ Flame-arresting opening edge to prevent explosions from mechanical discharges. ▸ Built-in spark-resistant lock with three-point locking prevents unauthorized access. ▸ Multiple grounding points throughout; simply remove a rivet to secure the grounding cable. ▸ Continuous top, bottom, and side closure for added protection.

Convenience and Quality

▸ Easy-to-adjust shelves every 15 cm, with a load capacity of 80 kg each, laboratory-tested (IPT). ▸ 3 mm U-beam reinforcement and 100 mm height, preventing direct contact with the floor and facilitating transportation. ▸ Four leveling feet to keep the cabinet stable and elevated. ▸ Double-wall construction (#18 sheets) with thermal insulation, reinforced with creases for greater strength. ▸ Safety stickers: "KEEP FIRE AWAY - FLAMMABLE", instructions for use and corresponding standards.

Applications

▸ Storage of flammable liquids ▸ Storage of fuels ▸ Storage of chemical reagents ▸ Storage of paper and other solid fuels

Available in various dimensions as needed.

Note: Other measurements and colors available upon request.

Code

10212

Model

TK20 Fireproof Cabinet model cabinet

Height

1000mm

Width

1000mm

Depth

450mm

Shelves

1 Mobile and 1 Floor with containment dam

Weight

80kg

Material

Carbon steel

30-GALLON FIRE CAPACITY CABINET
