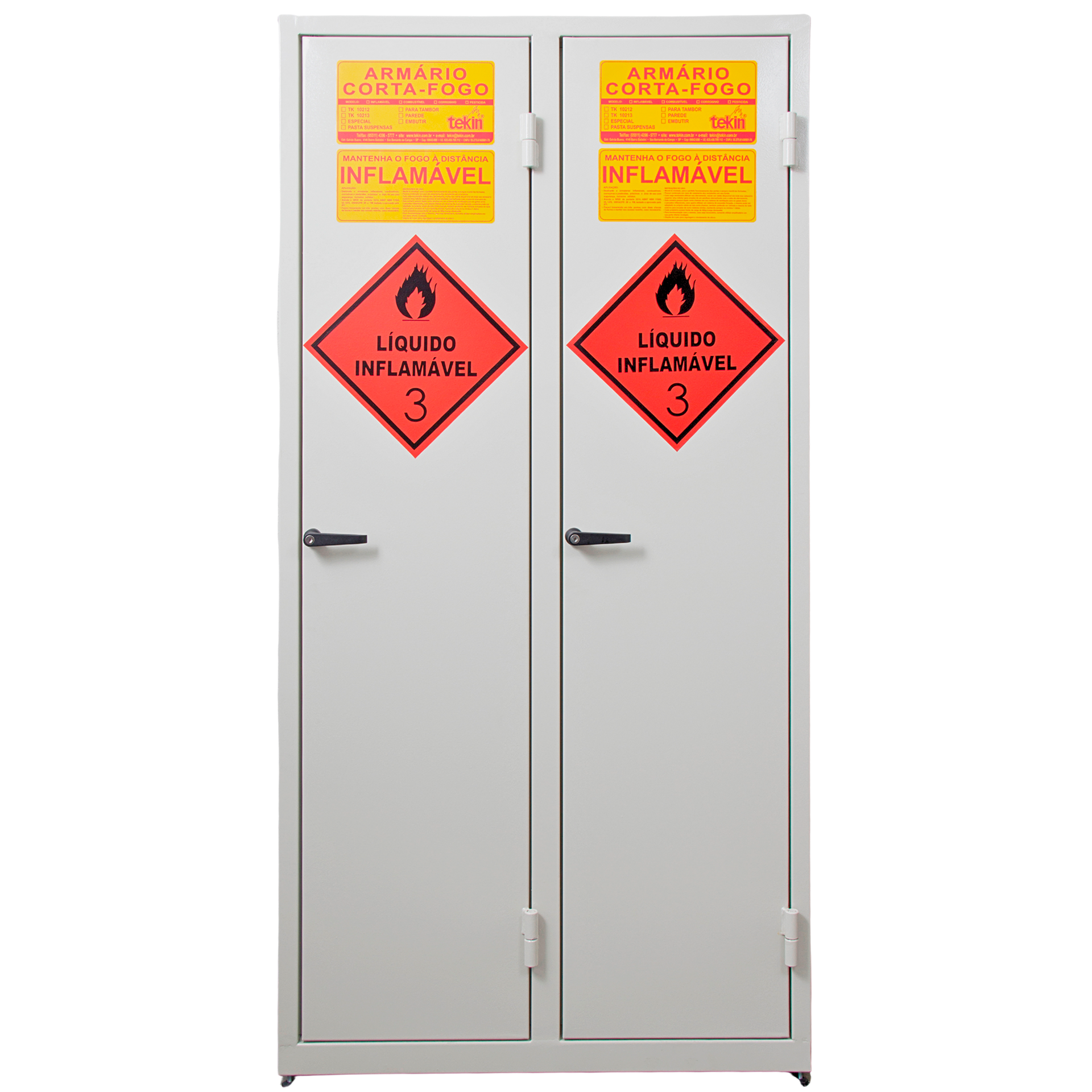

Fireproof Cabinet with 2 Independent Doors - COD 11069/11070

(Images for illustrative purposes only)

Fireproof Cabinet – Split Model with Independent Doors

Sizes and Codes:

1000x1000x450 – Cód. TK11069

2000x1000x450 – Code TK11070

Examples of possible combinations:

• Flammable / Combustible
• Flammable / Corrosive
• Flammables / Pesticides
• Corrosives / Pesticides
• Other combinations on request

Description

Fireproof cabinet with 2 independent or combined doors, built in carbon steel sheets internally and externally, with a layer of resistant insulation around the entire perimeter.

▸ Top and bottom opening with double flame arrester system for ventilation of light and heavy gases ▸ Fire resistance of 900°C for 1 hour ▸ Lower base in “U” sheet metal profile with threads for installation of 4 leveling feet ▸ Independent doors, with spark-proof Cremona latch and 2 keys ▸ Independent mobile and adjustable shelves for each side, adjustable on rulers every 15 cm ▸ Internal coating in polymer alloy resistant to corrosives and pesticides ▸ Stainless steel shelves coated in the same color as the cabinet ▸ Standard painting in gray or custom colors, with colored doors for easy identification of materials

Meets the following standards: NFPA, OSHA, NR 20, NB 98, Ordinance 3214/78, UL 1275 and NBR 17505-4, with fire resistance tests carried out by IPT.

Built-in Security

▸ Flame arrestor system on the opening edges to prevent explosion ▸ Built-in anti-spark lock with three-point locking ▸ Grounding points all around for installing a grounding cable ▸ Continuous closing for greater security

Convenience and Quality

▸ Easy shelf adjustment, load capacity of 80 kg each ▸ Reinforcement in 3 mm “U” beam and 100 mm height ▸ 4 leveling feet for stability and elevation ▸ Double walls (sheets nº18) with thermal insulation and reinforcement in folds ▸ Safety stickers: “KEEP FIRE AWAY – FLAMMABLE”, with specific quadrant according to type of product

Colors and Purpose

▸ Red – Combustibles, Class III ▸ Yellow – Flammable liquids ▸ Blue – Acids and corrosives ▸ Green – Pesticides and insecticides

Applications

▸ Storage of flammable liquids, combustibles, pesticides, corrosives, and chemical reagents ▸ Storage of paper and other solid fuels

Note: Other measurements and colors available upon request.

Request a quote for customizing dimensions, colors, and combinations.

Code

11069

11070

Model

TK20 Fireproof Cabinet model Cabinet

TK20 Fire Cabinet Standard model

Height

1000mm

2000mm

Width

1000mm

1000mm

Depth

450mm

450mm

Capacity

30.0 Gallons

60.0 Gallons

Weight

80kg

180kg

Material

Carbon steel

Carbon steel
