Hose - 23003


(Images for illustrative purposes only)

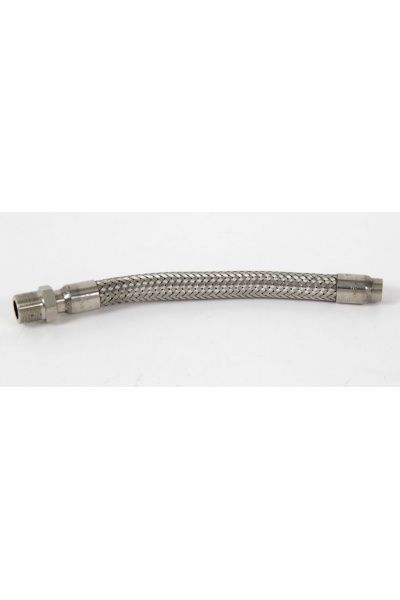

23003 - Flexible stainless steel extension hose for ¾” safety valve and/or T4 model containers

 COD 23003



Tekin has a wide range of transfer products, each designed for a specific purpose (need). Tested and quality-assured products, a quality that builds trust because they have undergone rigorous industry and other testing.


Technical Description:

The flexible stainless steel extension hose is indicated to work together with the ¾” metering valve, as a centralizer of the flow of the liquid that is being used in it, as well as with the outlet valve of the T4 model safety container, in both situations as a centralizer of the liquid flow, thus avoiding side splashes and also facilitating the filling of equipment that has a small fuel tank nozzle and without the use of a funnel.


Application:

Used in T4 model safety containers and in ¾” dosing valves code 10190 and/or 10191 to facilitate the removal of flammable liquid, centralizing the liquid flow in a steerable manner and without splashing.


Made of 304 stainless steel, it is compatible with all types of flammable and combustible materials, except corrosive liquids and acids. It keeps them free from contamination, making it ideal for the pharmaceutical and food industries.



Mode of operation:

Screw on the ¾” series 1000 valve threaded onto the drum and/or the T4 model container and place it in a horizontal position. To release the liquid, operate the valve lever to remove the flammable liquid.


Built-in quality:

  • It has a thread compatible with the Tekin series 1000 ¾” line valve code 10190 in bronze and 10191 in stainless steel.
  • It has a thread at the end for adaptation to 1000 series ¾” taps (AVAILABLE FOR THE ¾” LINE ONLY), also compatible with all flammable and combustible liquids on the market, SEE COD 10190 and 10191 IN OUR CATALOG FOR THIS.
  • Made of AISI 304 stainless steel, and compatible with all flammable and combustible liquids on the market and because it is stainless metal, it does not oxidize or dry out like rubber hoses.
  • Length of 220mm useful.





Regulatory Standards Approved

  • N - Within NFPA specifications
  • O - In accordance with OSHA regulations
  • NR - In accordance with Brazilian regulations.
