T3
(Images for illustrative purposes only)

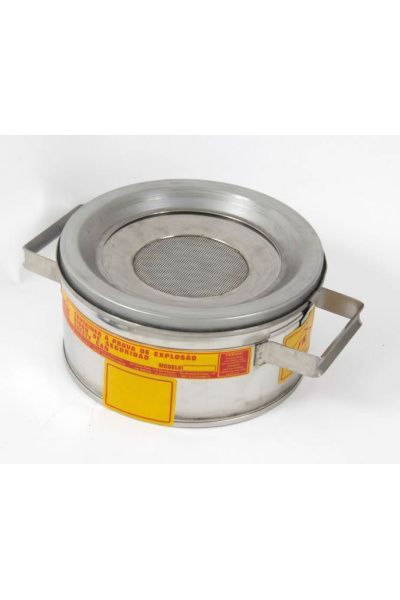

Safety and Explosion-Proof Container - Model T3
Container for containing droplets from valves installed in drums or stationary containers. Equipped with a flame arrestor system, it prevents the risk of explosions and fires caused by splashes caused by valves. It can also be used to moisten cloths, rags, and/or parts.
500ML InoxCód 10119
1.0L InoxCód 10121
2.0L InoxCód 10123
3.0L InoxCód 10125
5.0L InoxCód 10127
10.0L InoxCód 10129
18.9L InoxCode 10131
Tekin has a wide range of transfer products, each designed for a specific purpose (need). Tested and guaranteed quality, this quality builds trust, as they have undergone rigorous industry and other torture (resistance) tests.
Technical Description: Safety and explosion-proof container model T3, capacity as per the table below. Made of AISI 304 stainless steel.
Application: It is used to wet cloths or rags in the liquid, simply by pressing the upper plate. It can also be used to clean small parts or as a drip container.
Flammable liquid compatibility: Acetone, ethyl alcohol, isopropyl alcohol, ammonium hydroxide, chloroform, ethyl acetate, ether, diesel fuel, lubricants, naphtha, diesel oil, fuel oil, perchlorethylene, sodium hydroxide, toluene, toluene and silicone, etc.
Please note that the product made of stainless steel is not compatible with products such as sulfuric and hydrochloric acids, etc.
How to operate: Place the flammable liquid to be used in the container. Press the top plate so that the liquid moistens the cloth or rag to be used. Built-in quality:
- Certified product that meets national and international regulations;
- Prevents the spread of fire in case of fire;
- Avoids wasting flammable liquids;
- Spring return in AISI 304 stainless steel.
- Equipped with flame arrester and anti-explosion system;
Information by code or capacity
Code
10119
10121
10123
10125
10127
10129
10131
Model
T3 - 500mL
T3 - 1L
T3- 2L
T3 - 3L
T3 - 5L
T3 - 10L
T3 - 18.9L
External Ø
130mm
200mm
200mm
200mm
200mm
320mm
320mm
Total height
60mm
70mm
90mm
120mm
140mm
170mm
300mm
Weight
400gr
1 kg
1.2kg
1,5kg
2kg
3kg
3.4kg
Material
Stainless steel
Stainless steel
Stainless steel
Stainless steel
Stainless steel
Stainless steel
Stainless steel
