TK305L


(Images for illustrative purposes only)

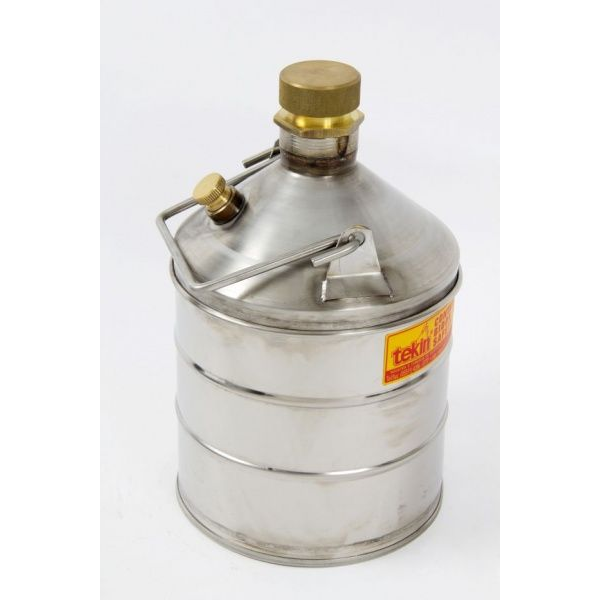

TK305L Security Container

Suitable for safe transport and storage. It features a screw-top nozzle and a manual vacuum relief valve, providing an excellent seal. Both are flame-retardant and explosion-proof. It features an ergonomically designed handle for easy transport and transfer, and full-contour grooves for use in harsh environments.


5.0 L InoxCód. 10317


10.0 L InoxCód.10318


20.0 L InoxCód. 10319


50.0 L InoxCód. 10320



Tekin has a wide range of transfer products, each designed for a specific purpose (need). Tested and guaranteed quality, this quality builds trust, as they have undergone rigorous industry and other torture (resistance) tests.




Technical Description:

Safety and explosion-proof container model TK 305 L, capacity as per the table below. Made of AISI 304 stainless steel.


Application:

In the storage, transportation and transfer of flammable and/or combustible liquids, including in vehicles.

Compatibility of flammable liquids:

Compatible with: ethyl alcohol, isopropyl alcohol, ammonium hydroxide, chloroform, ethyl acetate, ether, diesel fuel, gasoline, glycerin, hexyl hydraulic oils, kerosene, lubricants, naphtha, deli oil, and fuel oil.

NOTE: the nozzle seal can be corroded by products such as: chlorine forme and heptane.

Stainless steel is not compatible with products such as: sulfuric acid, hydrochloric acid, etc.




Mode of operation:

Remove the screw cap to fill and/or remove the liquid in question by tipping the container using its upper handle and opening its anti-vacuum valve and access relief valve located on the side.


Built-in quality:

  • Product meets national and international regulations;
  • Prevents the spread of fire in case of fire;
  • It has an anti-vacuum valve;
  • It has a removable flame arrester system;
  • Equipped with flame arrester and anti-explosion system;
  • Ergonomic handles;
  • Entirely made of AISI 304 stainless steel;
  • Tekin has a wide range of transfer products, each designed for a specific purpose (need). Tested and guaranteed quality, this quality builds trust, as they have undergone rigorous industry and other torture (resistance) tests.






Information by code or capacity

Code

10317

10318

10319

10320

Model / Capacity

TK 305L - 5L

TK 305L - 10L

TK 305L - 20L

TK 305L - 50L

External Ø

175mm

215mm

275mm

360mm

Ø filling nozzle

35mm

35mm

35mm

35mm

Total height

310mm

365mm

430mm

780mm

Weight

1.6Kg

2.2Kg

2.8Kg

5.6Kg

Material

Stainless steel

Stainless steel

Stainless steel

Stainless steel
