Containment Pallet for IBCs - Model TK 5010

(Images for illustrative purposes only)

Containment Pallet for IBCs – Model TK 5010

CODE 5010 – 1000 liter containment

Containment dikes, containment basin, chemical containers, environmental protection, containment tray, containment pallet for drums, spill drum, containment pallet for IBCs

Containment pallets were developed to form a retention platform, meeting the safety, efficiency and environmental preservation requirements of your workplace.

▸ Constructed entirely of polyethylene or steel, ideal for material storage and handling. ▸ Offer excellent chemical resistance, low weight, and easy mobility. ▸ Used to store, pump, and transport various chemicals and liquids.

Standards and Compliance

▸ The pallets and their options — such as ramp, joining element and secondary containment system — meet EPA CFR 264.175, ISO 14000, OSHA 18000 standards and environmental inspection requirements.

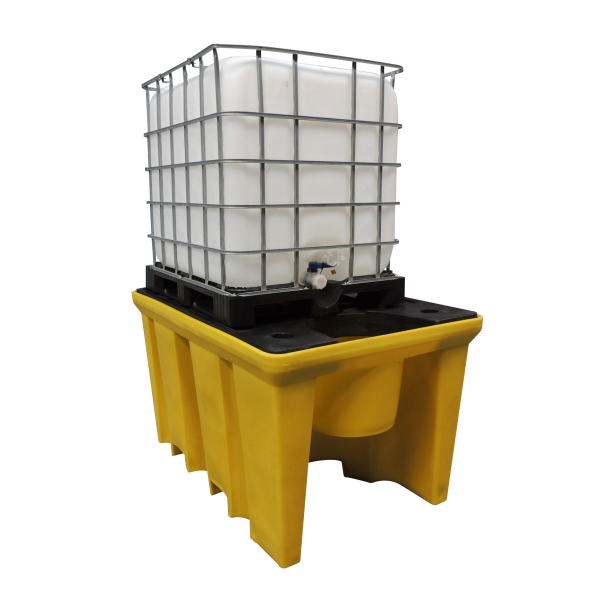

Model TK 5010 – Containment Pallet for IBCs

With the increase in the use of IBCs, TEKIN launches the newest and most innovative product for large-scale containment.

The Containment Pallet for IBCs Model TK 5010 was developed to facilitate transportation, storage and use, functioning as a modular system, without the need for installation, assembly or masonry, that is, ready to use.

▸ Entirely developed in high-density polyethylene (PELMD). ▸ Modular and resistant structure. ▸ Design focused on operational and environmental safety.

Technical Specifications

▸ Type: High Profile – with pallet jack and forklift entry, allowing IBC transportation throughout the factory. ▸ Code: 5010 ▸ Dimensions (mm): 1710 x 1200 x 980 (height) ▸ Containment capacity: 1000 liters ▸ Load capacity: 2000 kg

Construction Features

▸ Top support with strategic holes and reinforced side structure for accommodating tanks or IBCs, eliminating the need for precise centering. ▸ ¾” drain plug on the bottom side for collecting spilled liquids. ▸ Constructed entirely of polyethylene, compatible with flammable, corrosive, and combustible liquids. ▸ Black support platform conceals dirt and keeps the work environment clean. ▸ Total IBC containment capacity, supporting 2,000 kg of dissipated load. ▸ Fitting for receiving bucket with uneven level, facilitating the pouring of liquid into the container.

Built-in Quality

▸ Meets OSHA 40 CFR 264.175 requirements. ▸ Prevents workplace accidents. ▸ Provides quick use. ▸ Allows for the reuse of liquids.

Advantages

▸ Guaranteed reliability and safety. ▸ Safe operation, reducing the risk of accidents. ▸ The product prevents contact with the environment, preventing liquid evaporation. ▸ Reduces operating time. ▸ Reuses liquids, avoiding disposal and waste. ▸ Includes a fitting for a receiving bucket with an uneven surface, to facilitate emptying the IBC into the receiver.

Cor

▸ Containment dike: Yellow and/or Orange ▸ Grating: Black

Raw material

▸ PE – Polietileno

General Characteristics

▸ Pallet for spill containment. ▸ Use in the textile, chemical, petrochemical, and food industries, as well as in machine shops, and fuel and lubricant distributors. ▸ UV6 weatherproof and antioxidant-resistant. ▸ Temperature-resistant from -40°C to 60°C. ▸ Made of polyethylene (PELMD). ▸ Safety and efficiency, preserving the environment. ▸ Excellent chemical resistance, lightweight, and easy to handle. ▸ Reuse of spilled liquid, in some cases, avoiding waste. ▸ Equipped with a ¾” drain.

TEKIN Quality Commitment

Tekin has a wide range of transfer products, each designed for a specific purpose (need).

Tested and quality-assured products that generate trust and durability, as they undergo rigorous industrial and technical testing.
