T7

(Images for illustrative purposes only)

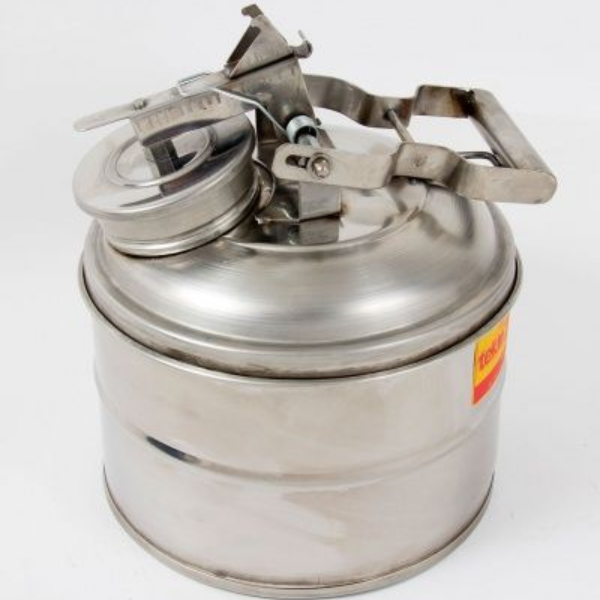

T7 security container

Designed for the storage, transportation, and disposal of flammable liquids, its main purpose is quick filling and emptying, thanks to its oversized 100 mm diameter neck opening. A fixed handle position allows the lid to remain open for easy filling and emptying. Suitable for filling large-volume containers, such as tanks, it is also widely used to collect dirty liquids from cleaning laboratory and industrial equipment.

Technical Description:

Safety and explosion-proof container, model T7, capacity as per the table below. Made of AISI 304 stainless steel with a 100mm opening for easier filling and emptying.

Application:

In the storage, transfer and disposal of flammable liquids.

Compatibility of flammable liquids:

Compatible with acetone, ethyl alcohol, isopropyl alcohol, ammonium hydroxide, chloroform, ethyl acetate, ether, diesel fuel, lubricants; naphtha, diesel oil, fuel oil, perchlorethylene, sodium hydroxide, toluene, toluene and silicone.

NOTE: The nozzle seal can be attacked by products containing: chloroform and Heptane.

Stainless steel is not compatible with products such as sulfuric and hydrochloric acids, etc.

Mode of operation:

When filling and transporting, the operator opens the lid by activating the spring using the handle and engages it in the rest link (open position) located at the base.

Built-in quality:

• Product meets national and international regulations;
• Prevents the spread of fire in case of fire;
• Self-closing nozzle cap.
• Latch to hold the lid in the open position;
• Equipped with flame arrester and anti-explosion system;
• Ergonomic handles;
• Easy, fast and safe transfer, avoiding product waste.
• Entirely made of AISI 304 stainless steel
• Tekin has a wide range of transfer products, each designed for a specific purpose (need). Tested and guaranteed quality, this quality builds trust, as they have undergone rigorous industry and other torture (resistance) tests.

Code

10168

10170

Model

T7- 10L

T7- 18.9L

Ø filling nozzle

100mm

100mm

Height

440mm

540mm

Weight

2.6Kg

3.2Kg

Material

Stainless steel

Stainless steel
