Fire Cabinet with Automatic Return Doors and Fuse Locking - Code TK 11063 and TK 11064

(Images for illustrative purposes only)

Sizes and Codes

30 Gallons – 1000 x 1000 x 450 mm – Code TK 11063

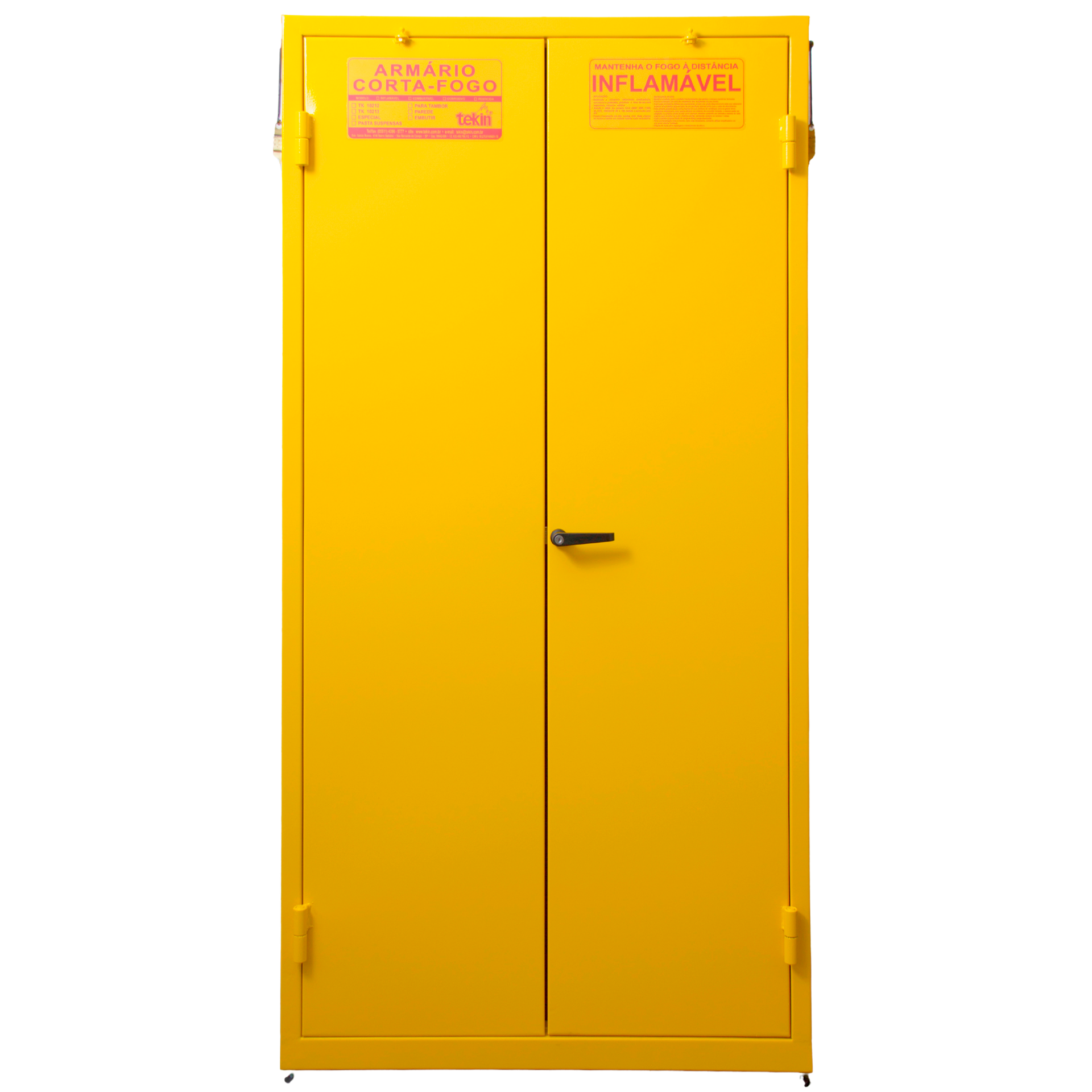

60 Gallons – 2000 x 1000 x 450 mm – Code TK 11064

Description

Fireproof cabinet with automatic return doors and fusible alloy locking, built in carbon steel sheets internally and externally, with a layer of resistant insulation around the entire contour

▸ Top and bottom opening with double flame arrester system for ventilation of light and heavy gases ▸ Fire resistance of 900°C for 1 hour ▸ Lower base in “U” sheet metal profile with threads for installation of 4 leveling feet ▸ Doors with spark-proof Cremona latch and 2 keys, with automatic return system and fusible alloy locking that breaks at 62°C for automatic closing ▸ Mobile and adjustable shelves, adjustable on rulers every 15 cm ▸ Standard painting in yellow – Flammable liquids – Liquids or for custom colors, with colored doors for easy identification of materials

Meets the following standards: NFPA, OSHA, NR 20, NB 98, Ordinance 3214/78, UL 1275 and NBR 17505-4, with fire resistance tests performed by IPT

Built-in Security

▸ Flame arrester system on the opening edges to prevent explosion ▸ Anti-spark built-in lock with three-point locking ▸ Automatic door closing system with fusible link, not operator dependent ▸ Grounding points all around for installing a grounding cable ▸ Continuous closing for greater safety

Convenience and Quality

▸ Easy shelf adjustment, load capacity of 80 kg each ▸ Reinforcement in 3 mm “U” beam and 100 mm height ▸ 4 leveling feet for stability and elevation ▸ Double walls (sheets nº18) with thermal insulation and reinforcement in folds ▸ Safety stickers: “KEEP FIRE AWAY – FLAMMABLE”, with specific quadrant according to type of product

Applications

▸ Storage of flammable liquids, combustibles, pesticides, corrosives, and chemical reagents ▸ Storage of paper and other solid fuels

Note: Other sizes and colors available upon request.

Request a quote for customizing dimensions, colors and combinations

Code

11063

11064

Model

TK20 Fireproof Cabinet model Cabinet

TK20 Fire Cabinet Standard model

Height

1000mm

2000mm

Width

1000mm

1000mm

Depth

450mm

450mm

Capacity

30.0 Gallons

60.0 Gallons

Weight

90kg

200kg

Material

Carbon steel

Carbon steel
