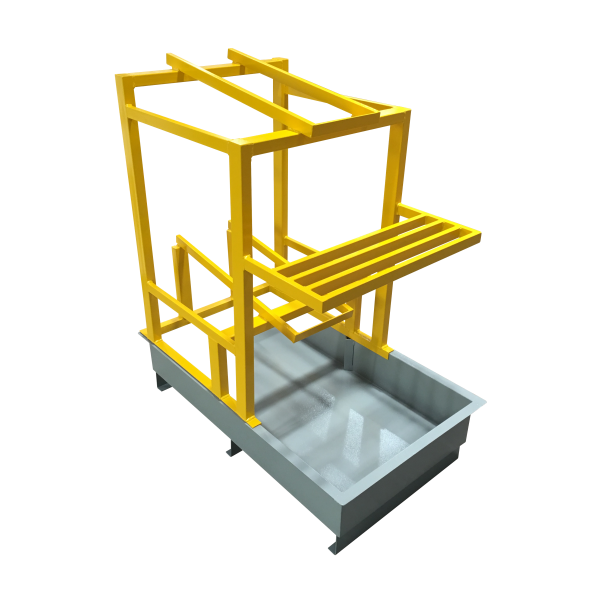

Support for 2 vertical drums with containment dike COD 15019
(Images for illustrative purposes only)
Support for 2 vertical drums with containment dike COD 15019
MADE OF CARBON STEEL AND PAINTED BY THE ELECTROSTATIC POWDER SYSTEM IN YELLOW AND GRAY COLORS
(Note: this code refers to the complete set, excluding the valves.)
Description
- Capacity: 02 vertical drums
- Measurements: 650 x 1240 x 1200 mm (W x D x H)
- Steel structure and flat bars
- Load: up to 1200 kg
- Weight: 23 kg (structure) 40 kg (steel containment dike/pallet)
- Color: Safety Yellow M.5Y 8/12 Matte or Gray
- Material: Carbon steel, painted by electrostatic powder system
Observation:
Product intended for 200L metal drums and 200L canisters
Technical Description
- Ideal for storing 2 drums (one on top of the other, but independent).
- Allows easy handling and changing of drums with the help of a forklift.
Application:
Storage of up to 2 200L drums vertically for fractionation.
Operating Mode:
Fit the support to the carbon steel pallet, place the 1st drum on the bottom, assemble the top and position the 2nd drum.;
Built-in quality:
- Product meets national and international regulations;
- It has a double cradle for the drum;
- Facilitates the safe removal of liquid;
- Steel structure, reinforced for loads of up to 1200 kg
- Avoids ergonomic problems for the operator.
- Includes the complete system of a pallet of 2 drums without grid and with reinforcement for adaptation of the double cradle (metal structure) with 200 liters of containment.
Tekin has a wide range of transfer products, each designed for a specific purpose (need). Tested and quality-assured products, a quality that builds trust because they have undergone rigorous industry and other testing.
