Anti-Panic Bar Model 1700 – Push Bar

General Description:

The Model 1700 – Push Bar anti-panic bars are made with painted carbon steel tube and recommended for fire doors, as well as metal, wood and aluminum doors.

Specially developed for emergency exits and escape routes in high-traffic areas such as cinemas, churches, hospitals and public buildings.

Produced in accordance with NBR 11785 standards and tested by the Falcão Bauer Institute, according to Test Report No. CCC/229.956/11, a laboratory accredited by INMETRO.

Construction and Materials

▸ Carbon steel structure painted in textured black. ▸ Brushed AISI 304 stainless steel tube and galvanized steel accessories. ▸ Suitable for clean and industrial environments, including harsh work. ▸ Compatible with single or double-leaf doors.

Models and Measurements

▸ COD 1700 S – suitable for single-leaf doors

Recommended for doors up to 1100 mm wide. For larger sizes, consult the sales team.

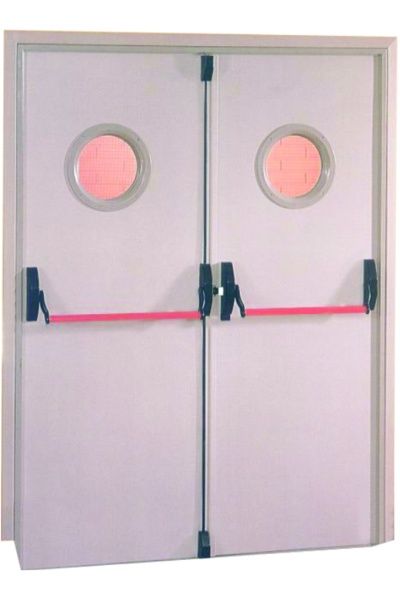

▸ COD 1700 D – suitable for 2-leaf (double) doors

Fits both sides of the door, one with horizontal locking and the other with vertical locking.

Suitable for doors up to 2200 mm in height and 2200 mm in total width (of both leaves).

For larger sizes, it is also possible to order.

Technical Features and Options

▸ Universal model with two-way opening (right and/or left). ▸ Easy reversal and simple installation, accompanied by manual and drilling template.

Available options:

Handle with key – COD 105

Handle without key – COD 108 for external opening.

(Possibility of adapting measurements for non-standard doors.)

Terminology and Applications

Escape Routes and Emergency Exits:

▸ Continuous, protected and signposted path for rapid evacuation to a safe area, ensuring the physical integrity of people.

Fire Door:

▸ It has a degree of fire resistance, preventing the spread of flames and smoke. ▸ It must always remain closed and be equipped with air springs tested in accordance with EN 1154 (force level ≥ 3 recommended).

Related Technical Standards (National and International)

National:

▸ NBR 11785 – Brazilian standard that determines the requirements for the manufacture, resistance, and operation of panic bars for emergency exits. ▸ NBR 6479 – Brazilian standard that certifies and determines the tests for classifying the fire resistance of the FIRE ASSY, consisting of: fire door, frame, and hardware (hinges, panic bars, and overhead springs). ▸ IT 11/2011 – Technical instruction of the Fire Department (SP) that determines the sizing and requirements for emergency exits. ▸ NBR 11742 – Standard that determines the requirements for the manufacture, resistance, and operation of fire doors for emergency exits.

International:

▸ EN 1125 – Panic Exit Devices (European standard for panic devices with horizontal bar).

Tekin Quality and Guarantee

Tekin offers a wide range of security and transfer products, developed for different needs.

All products are tested and certified, with guaranteed performance and durability, ensuring reliability and safety in industrial and public environments.
