Panic Bars - Model TK - Push Bar

(Images for illustrative purposes only)

TK Line Panic Bars – Push Bar

Tekin Panic Bars – TK Line

Push Bars are recommended for fire doors, as well as metal, wood or aluminum doors.

Specially designed for emergency exits and escape routes in places with high foot traffic, such as cinemas, churches, hospitals and public buildings.

Manufactured in accordance with regulatory standards NBR 11785 and tested by the Falcão Bauer Institute, according to Test Report No. CCC/229.956/11, issued by a laboratory accredited by INMETRO.

Construction and Materials

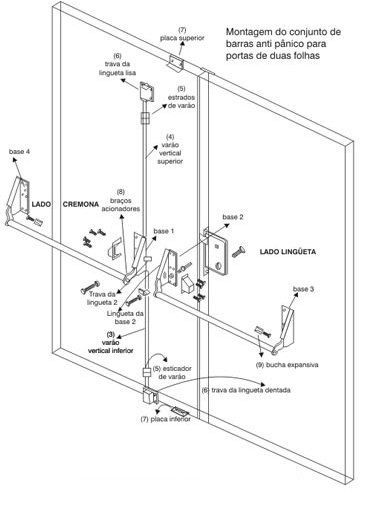

▸ Made entirely of carbon steel with textured black paint and brushed AISI 304 stainless steel tubing. ▸ Galvanized steel accessories, suitable for both clean environments and industrial and heavy-duty areas. ▸ Available for single- or double-leaf doors. ▸ Please specify the opening side (right or left) at the time of purchase.

Options and Customizations

▸ Handle with key – COD 105 (Opening side must be informed by the customer) ▸ Handle without key – COD 108, for opening from the outside to the inside. ▸ Possibility of adjusting the measurements for non-standard doors — consult the sales department for more details.

Technical Specifications

▸ Maximum recommended height: up to 2200 mm ▸ Total width (two sheets): up to 2200 mm ▸ For larger dimensions, inform the sales team for analysis and adaptation of the project.

Model

100

101

102

103

Model Table

Model 1008 single bar for overlay locks (right/left side)

Single bar model 2002S with side tab (right/left side)

Double bar model 1108 for overlay lock (right/left side)

Double bar model 2002D with side tongue (right/left side)
