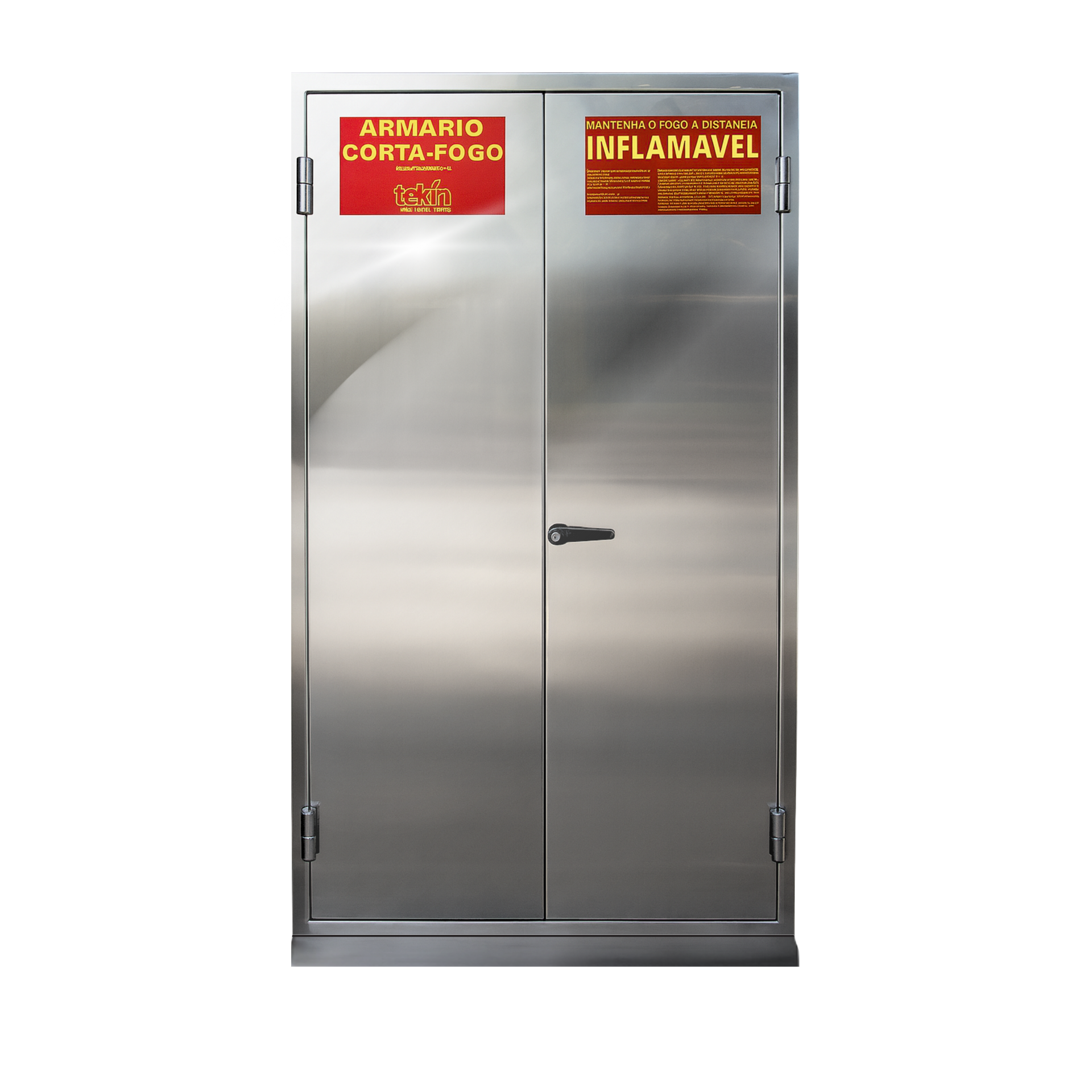

Polished Stainless Steel Fire Cabinet - CODE 11065 and 11066

(Images for illustrative purposes only)

Sizes and Codes

1000 x 1000 x 450 mm – Code. TK 11065

Stainless steel cabinet model – 30 gallon (100 kg) capacity

2000 x 1000 x 450 mm – Code. TK 11066

Standard stainless steel model – 60 gallon (200 kg) capacity

Description

Fireproof cabinet made of AISI 304 stainless steel, designed for storing flammable, combustible, pesticide, and corrosive materials. The structure is constructed of internal and external sheet metal, with a layer of durable insulation all around.

▸ Top and bottom opening with double flame arrester system for ventilation of light and heavy gases ▸ Fire resistance of 900°C for 1 hour ▸ Lower base in reinforced “U” sheet profile, with threads for installation of 4 leveling feet ▸ Doors with anti-sparking Cremona latch, built-in and with 2 keys ▸ Movable and adjustable shelves, adjustable in rulers every 15 cm, can be installed with the flap up or down ▸ Polished stainless steel finish

Meets the following standards: NFPA, OSHA, NR 20, NB 98, Ordinance 3214/78, UL 1275 – Flammable Liquid Storage Cabinets and NBR 17505-4, with fire resistance tests carried out by IPT.

Built-in Security

▸ Flame arrester system on the opening edges to prevent explosion ▸ Built-in anti-spark lock with three-point locking ▸ Grounding points all around, allowing easy installation of grounding cable ▸ Continuous closing system, preventing fire entry and ensuring total safety

Convenience and Quality

▸ Adjustable shelves with a 15 cm scale for better internal use ▸ Reinforcement in a 3 mm “U” beam and 100 mm in height, raising the cabinet and avoiding direct contact with the floor ▸ 4 leveling feet for stability and leveling ▸ Structure in No. 18 stainless steel sheets, with double walls and high-resistance thermal insulation ▸ Internal and external reinforcements with creases for greater durability ▸ Load capacity of 80 kg per shelf, laboratory tested (IPT)

Signaling

▸ Safety sticker: “KEEP FIRE AWAY – FLAMMABLE” ▸ Identification quadrants according to the type of product stored (flammable, corrosive, pesticides, etc.)

Applications

▸ Storage of flammable and combustible liquids ▸ Storage of pesticides, corrosives and chemical reagents ▸ Use in laboratories and industries ▸ Protection of solid fuels such as paper and derivatives

Note: Other sizes and colors available upon request.

Request a quote for customizing dimensions

Code

11065

11066

Model

Stainless steel fireproof cabinet

Stainless steel fireproof cabinet

Height

1000mm

2000mm

Width

1000mm

1000mm

Depth

450mm

450mm

Capacity

30 GALLONS

60 GALLONS

Weight

80kg

180kg

Material

Stainless Steel

Stainless Steel
