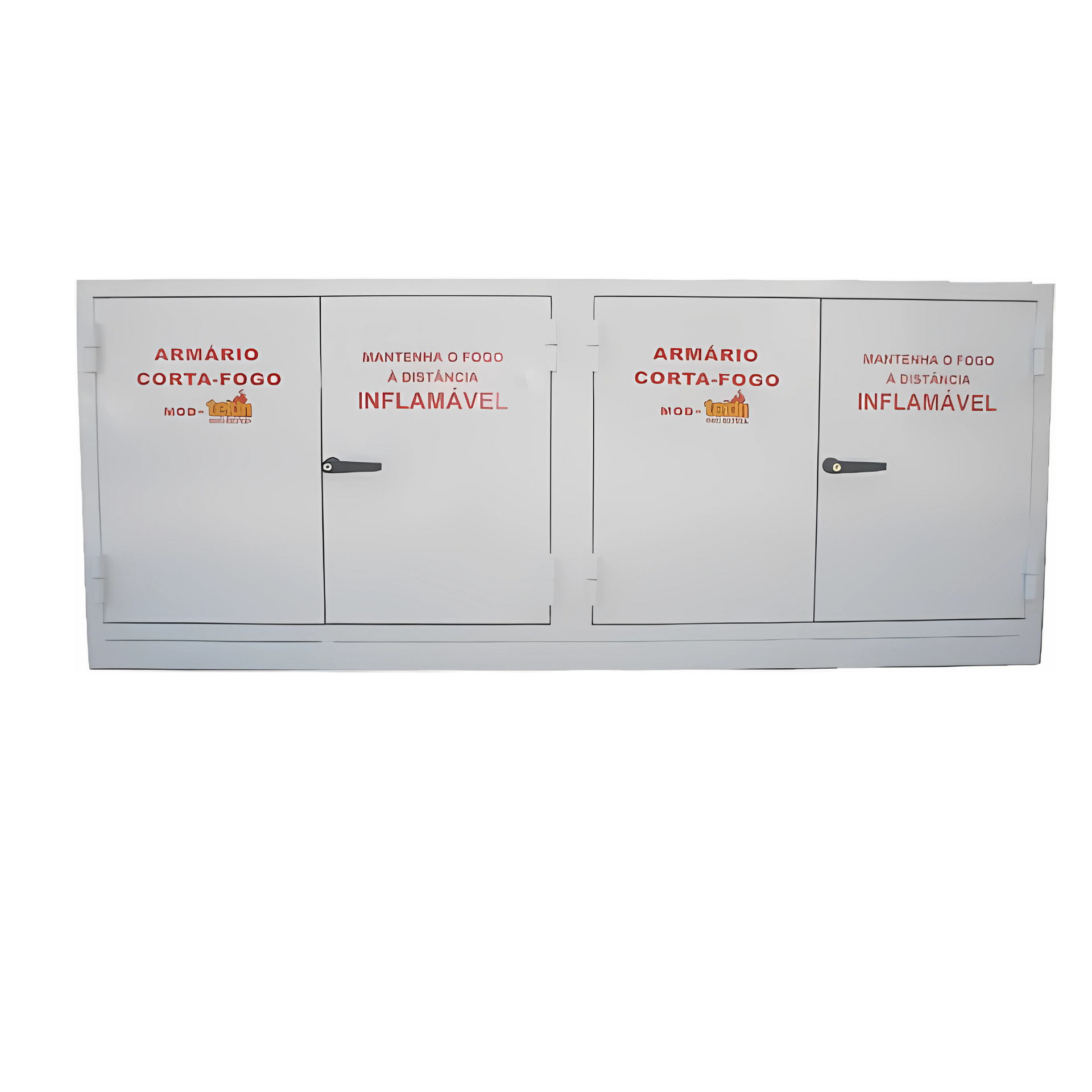

Double Fireproof Cabinet - Code TK11060

(Images for illustrative purposes only)

Sizes and Codes

1000 x 2000 x 450 mm (Standard) – Code TK 11060

Examples of possible combinations

Flammable / Combustible Flammable / Corrosive Combustible / Corrosive Other combinations on request

Description

Double Conjugated Model fire cabinet, fully interconnected and/or independent (not interconnected), for safe storage of flammable, combustible and/or corrosive materials:

▸ Internally and externally constructed of carbon steel sheets, with a layer of resistant insulation between the sheets ▸ Top and bottom opening with double flame arrestor system for ventilation of light and heavy gases ▸ Fire resistance of 900°C for 1 hour ▸ Lower base in reinforced “U” sheet profile ▸ Doors with spark-proof Cremona latch and 2 keys, with 2 sets of 2-leaf doors on each side and 1 central column ▸ Movable and adjustable shelves, adjustable on rulers every 15 cm ▸ Floor with shelf functioning as a containment dam ▸ False bottom with removable perforated plate type grill for collecting liquids ▸ Standard painting in red or custom colors ▸ Has a containment dam, thermal insulation according to NBR 17505-4 and grounding points all around

Meets the standards: NFPA, OSHA, NR 20, NB 98, Ordinance 3214/78 and UL 1275

Built-in Security ▸ Flame arrestor system on opening edges to prevent explosion ▸ Built-in anti-spark lock with three-point locking

Convenience and Quality

▸ Continuous closing for greater safety ▸ Easy shelf adjustment system, load capacity of 80 kg each ▸ Reinforcement in 3 mm “U” beam and 100 mm high ▸ 4 leveling shoes for stability ▸ Double walls (sheets nº18) with reinforcement in folds ▸ Safety stickers: “KEEP FIRE AWAY – FLAMMABLE”, with instructions for use and standards

Colors and Purpose

▸ Red – Combustibles, Class III ▸ Yellow – Flammable liquids ▸ Blue – Acids and corrosives ▸ Green – Pesticides and insecticides

Applications

▸ Storage of flammable, combustible and corrosive liquids in medium and large quantities

Note: Other measurements and colors available upon request. Request a quote for customizing dimensions.

Code

11060

Model

Double Conjugated Fire Door with 2 sets of 2-leaf doors on each side and 1 central column.

Height

2000mm

Width

1000mm

Depth

450mm

Weight

80kg

Material

Carbon steel

60-GALLON FIRE CAPACITY CAPACITY
