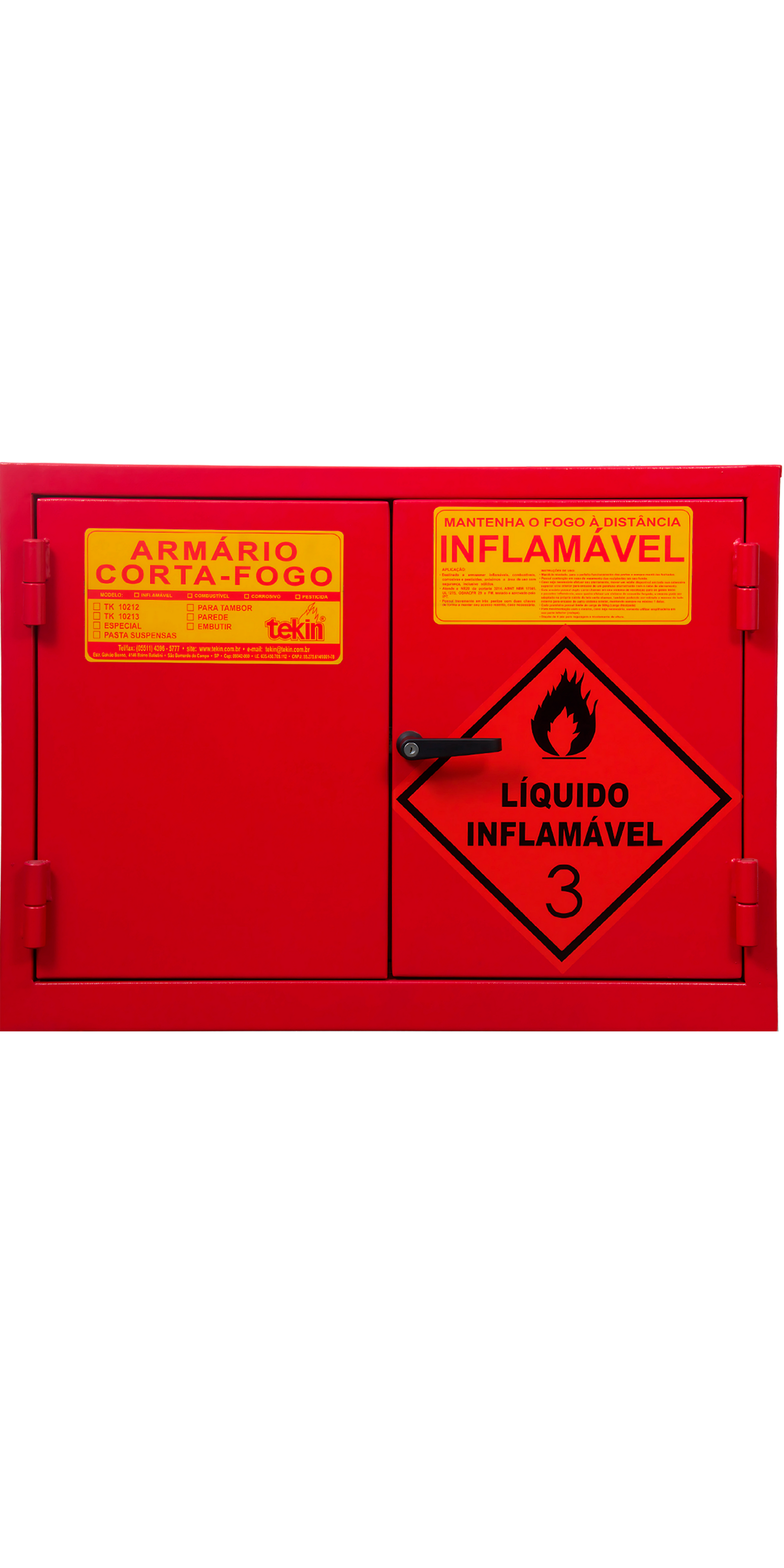

Built-in Fireproof Cabinet

(Images for illustrative purposes only)

Description

Built-in fireproof cabinet, built in carbon steel sheet internally and externally, with a layer of resistant insulation around the entire perimeter.

▸ Top and bottom opening with double flame arrester system for ventilation of light and heavy gases ▸ Fire resistance of 900°C for 1 hour ▸ Lower base in reinforced “U” sheet profile ▸ Two doors with spark-proof Cremona latch and 2 keys ▸ Mobile and adjustable shelves, adjustable in 15 cm steps ▸ Floor with shelf functioning as a containment dam ▸ Internal and external painting in standard red or custom colors ▸ Custom line suitable for laboratories, including fume hoods ▸ Possibility of installing 4 leveling shoes

Meets the standards: NFPA, OSHA, NR 20, NB 98, Ordinance 3214/78 and UL 1275

Built-in Security

▸ Flame arrestor system on the opening edges to prevent explosion ▸ Built-in anti-spark lock with three-point locking ▸ Grounding points all around for cable installation ▸ Thermal insulation according to NBR 17505-4

Convenience and Quality

▸ Continuous closure for greater security ▸ Adjustable shelves for better use of internal space ▸ Reinforced “U” beam (3 mm thick, 100 mm high) ▸ 4 leveling shoes for stability and elevation ▸ Allows for the use of reduced spaces in built-ins

Colors and Purpose

▸ Red – Combustibles, Class III ▸ Yellow – Flammable liquids ▸ Blue – Acids ▸ Green – Pesticides and insecticides

Applications

▸ Storage of flammable, combustible and corrosive liquids in small and medium quantities ▸ Ideal for integration into laboratory spaces, fume hoods and built-in areas

Technical Specifications

▸ Fireproof cabinet model TK 20, built-in model for flammable, combustible and corrosive materials ▸ Special measures indicated by the customer for better use of space ▸ It has containment dam and thermal insulation according to national and international standards ▸ Each shelf supports up to 80 kg, laboratory tested (IPT)

Note: Other sizes and colors available upon request.

Request a quote for customizing dimensions
